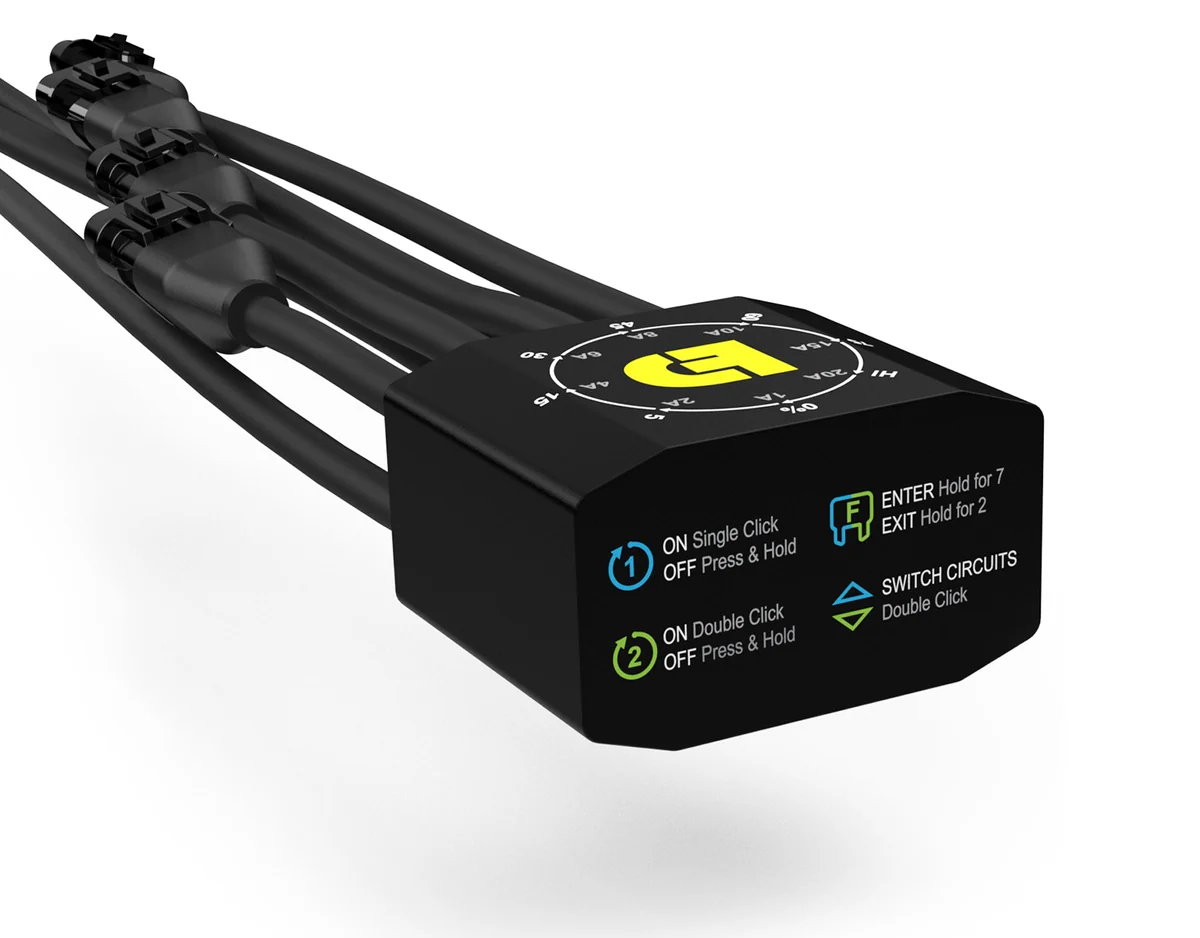

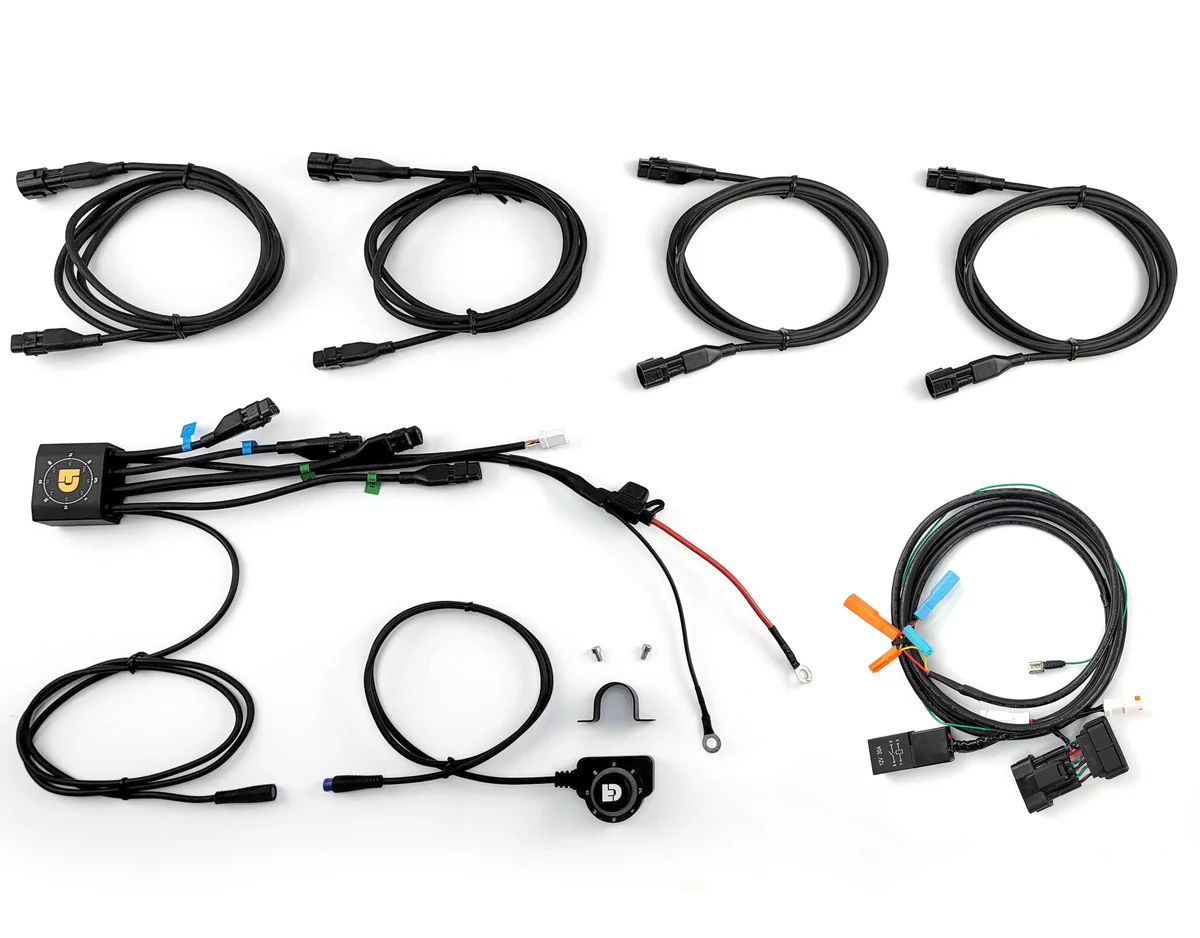

The innovative DialDim Lighting Controller lets you take full control of two sets of 3-wire auxiliary lights with a single, streamlined wiring harness. Its multicolor LED halo dimmer switch makes it easy to turn lights on/off and adjust brightness independently. The blue halo manages light set one, while the green halo controls set two—just double-click to switch between circuits. With high beam, turn signal, and horn input options, the controller unlocks smart features like automatic light cancellation with turn signals, flashing aux lights with turn signals, and strobing with the horn for added visibility.

More than just a dimmer, the DialDim gives you real-time feedback with precise light intensity indicators and customizable electronic fuse settings. If a fuse trips, the halo turns red and allows for a quick reset. It also functions as a battery monitor, flashing different colors at startup to show battery health and cutting power to the lights if voltage drops below 10.8V. With a rugged, waterproof design featuring gaskets and o-rings throughout, this controller is built to perform reliably in all weather conditions.

Features

• Control two sets of lights independently using one DialDim Switch

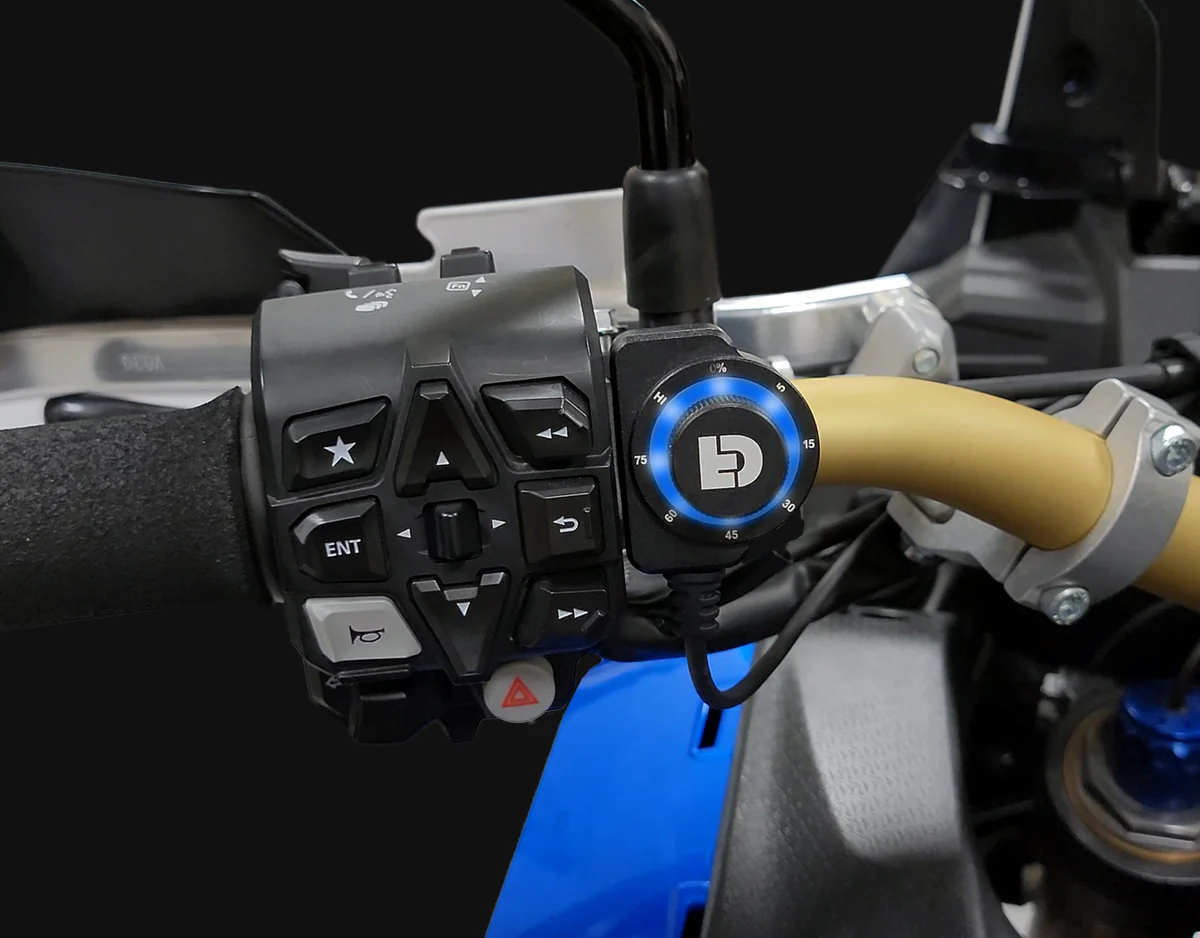

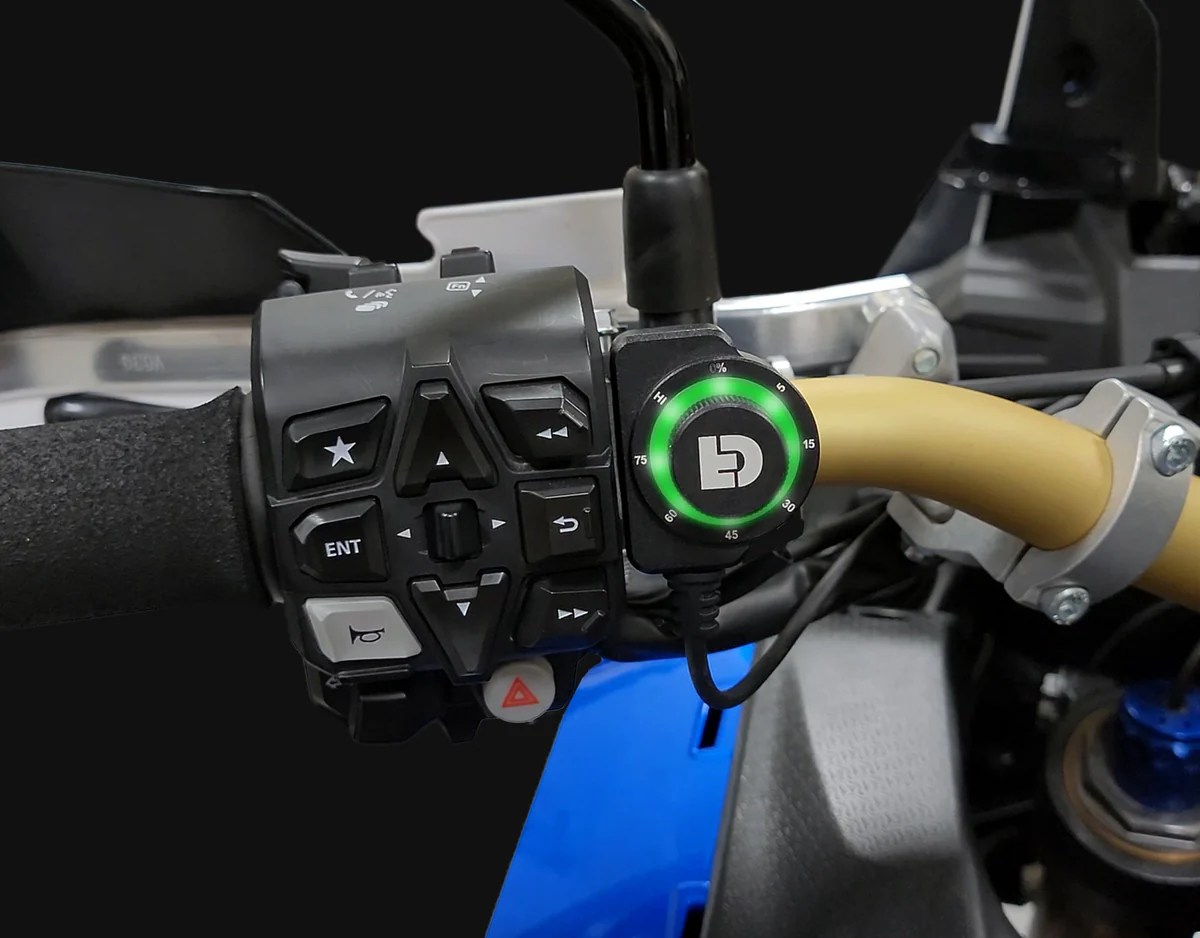

• Blue halo controls light set one; green halo controls light set two
• Double-click to switch between the two light circuits
• Lights automatically go to full brightness when high beam is turned on

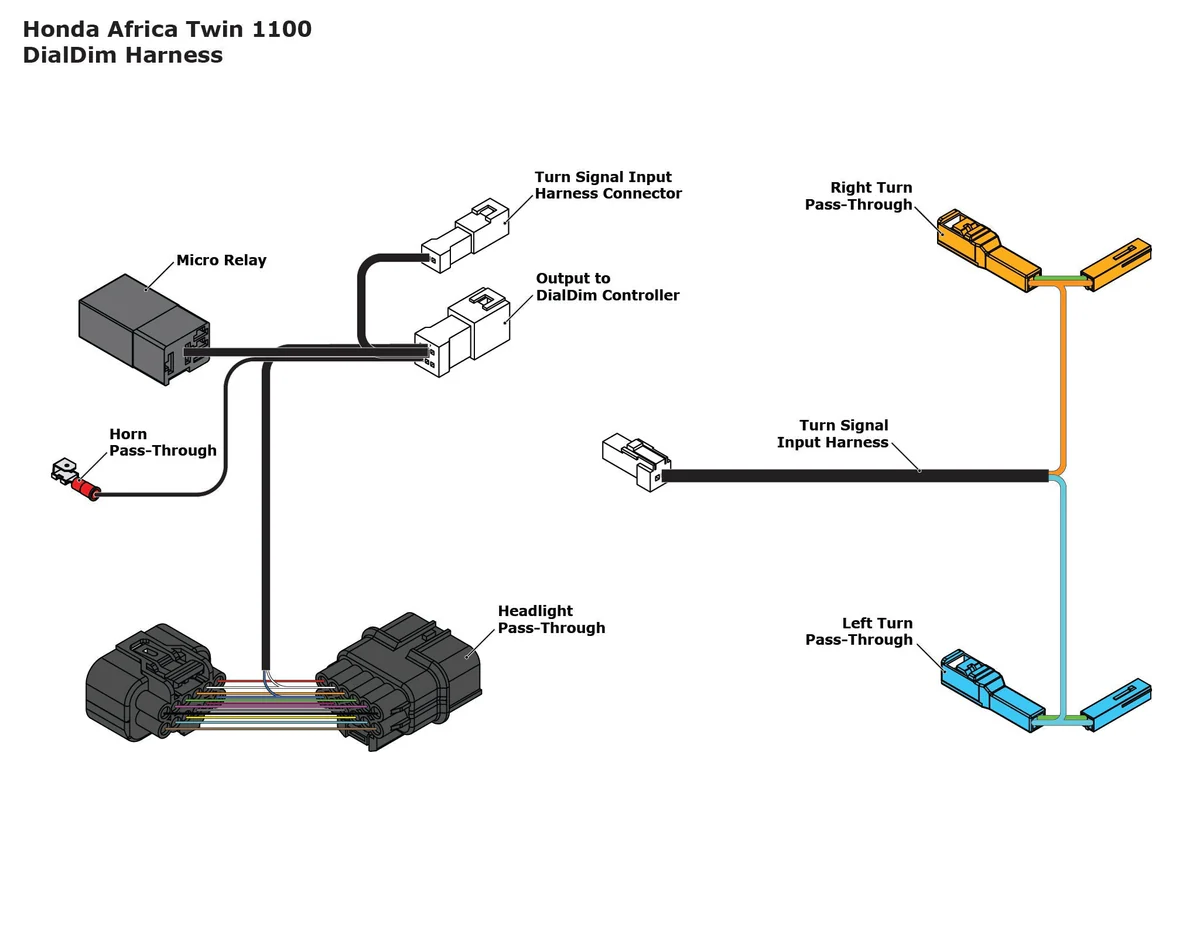

• Connect blue input wire to high beam circuit to enable high/low sync
• 0% dim setting keeps lights off during normal driving (Stealth Mode)
• In Stealth Mode, lights activate with high beam, turn signal, or horn
• Main lights (blue circuit 1) turn off with turn signal to avoid glare
• Amber lights (green circuit 2) flash in sync with turn signals
• Lights strobe at 4Hz when horn is used (requires horn wire connection)

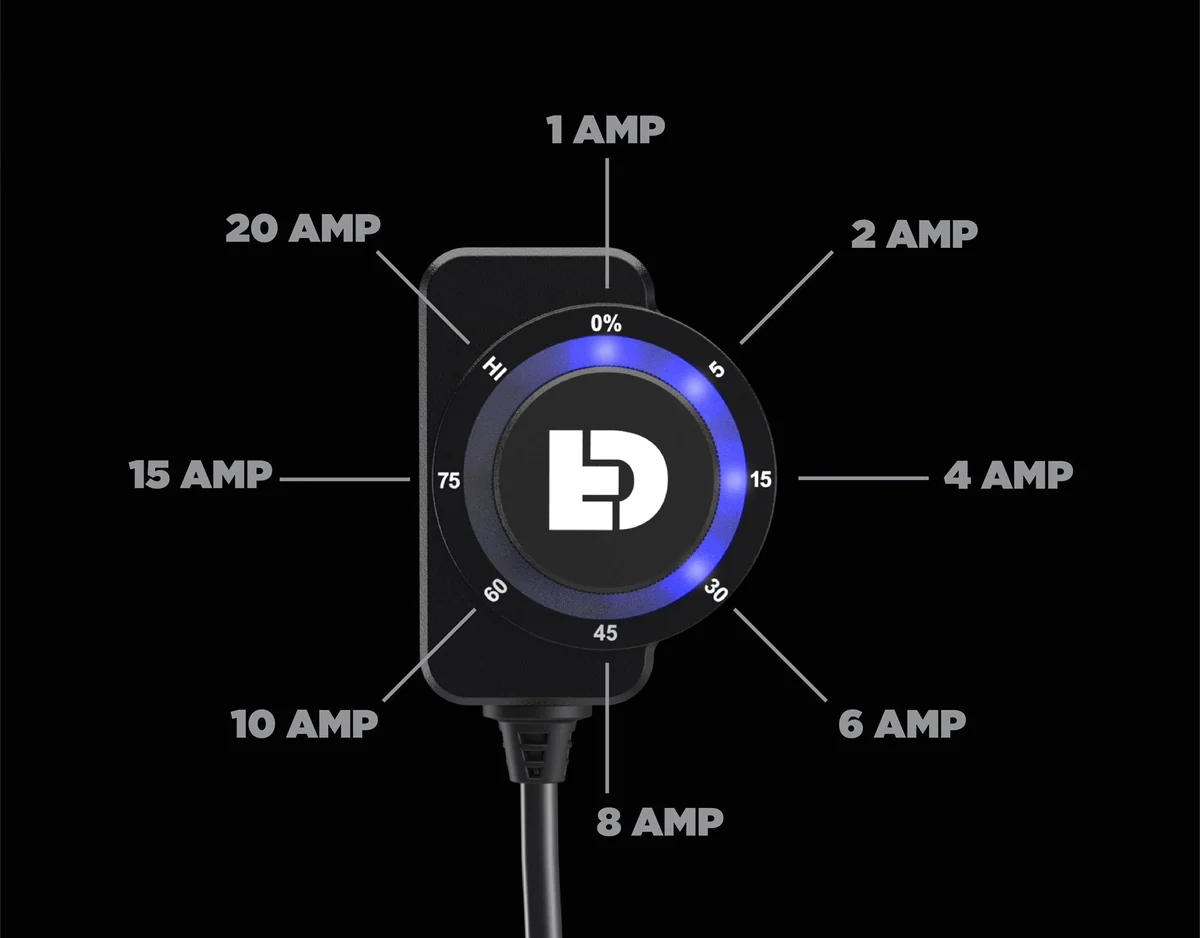

• Both circuits are electronically fused and adjustable via the switch
• Red halo light indicates a tripped fuse
• Switch halo flashes green on startup for a healthy battery
• Flashes red if battery voltage is below 11.8V
• If battery drops below 10.8V, lights won’t power on to protect battery
• Halo flashes 4 red LEDs to show low voltage condition
