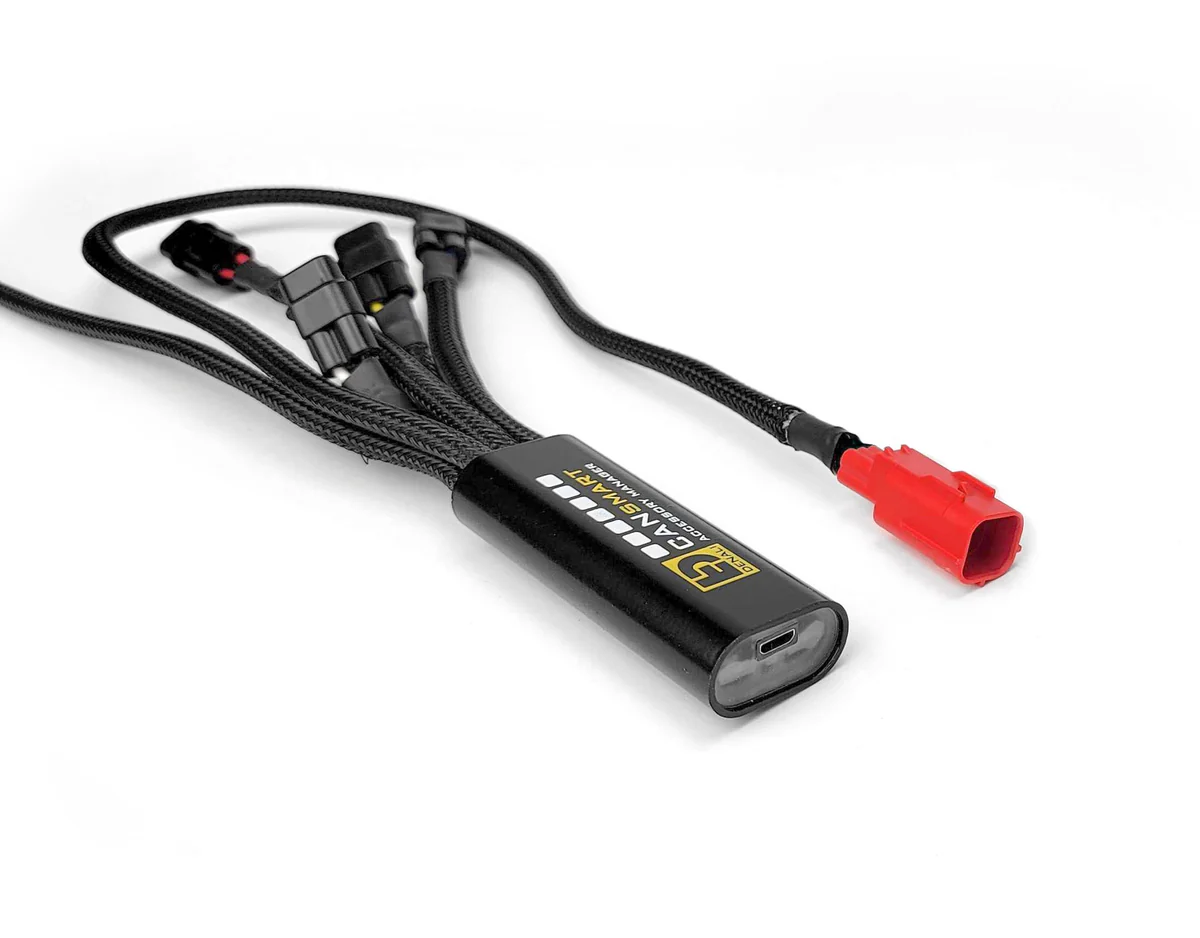

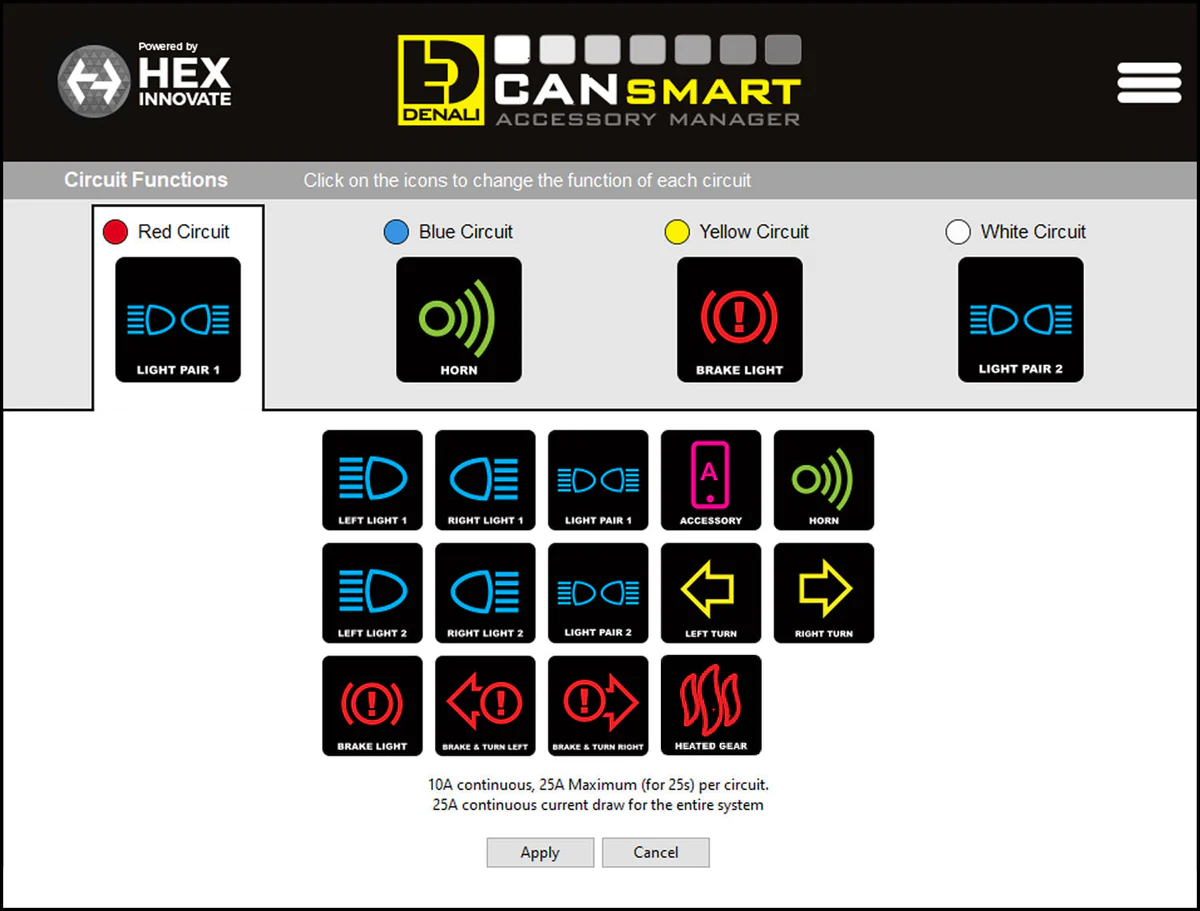

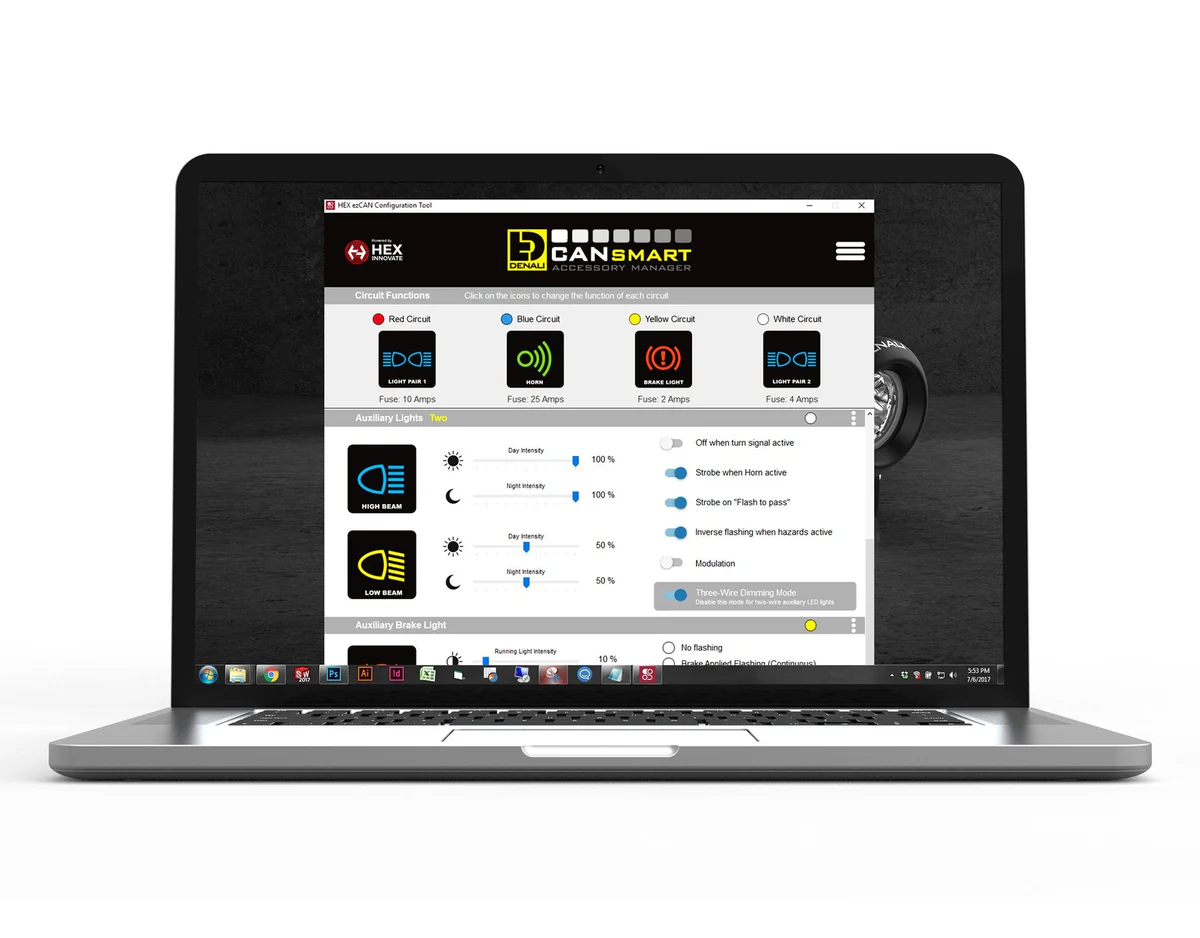

The innovative Harley-Davidson CANbus Controller offers a true plug-and-play solution for seamlessly integrating both aftermarket and genuine Harley-Davidson accessories. By connecting directly to your bike’s diagnostic port, it allows full control of your accessories through your factory handlebar switches or the DENALI Accessory Manager Software—no complicated wiring required.

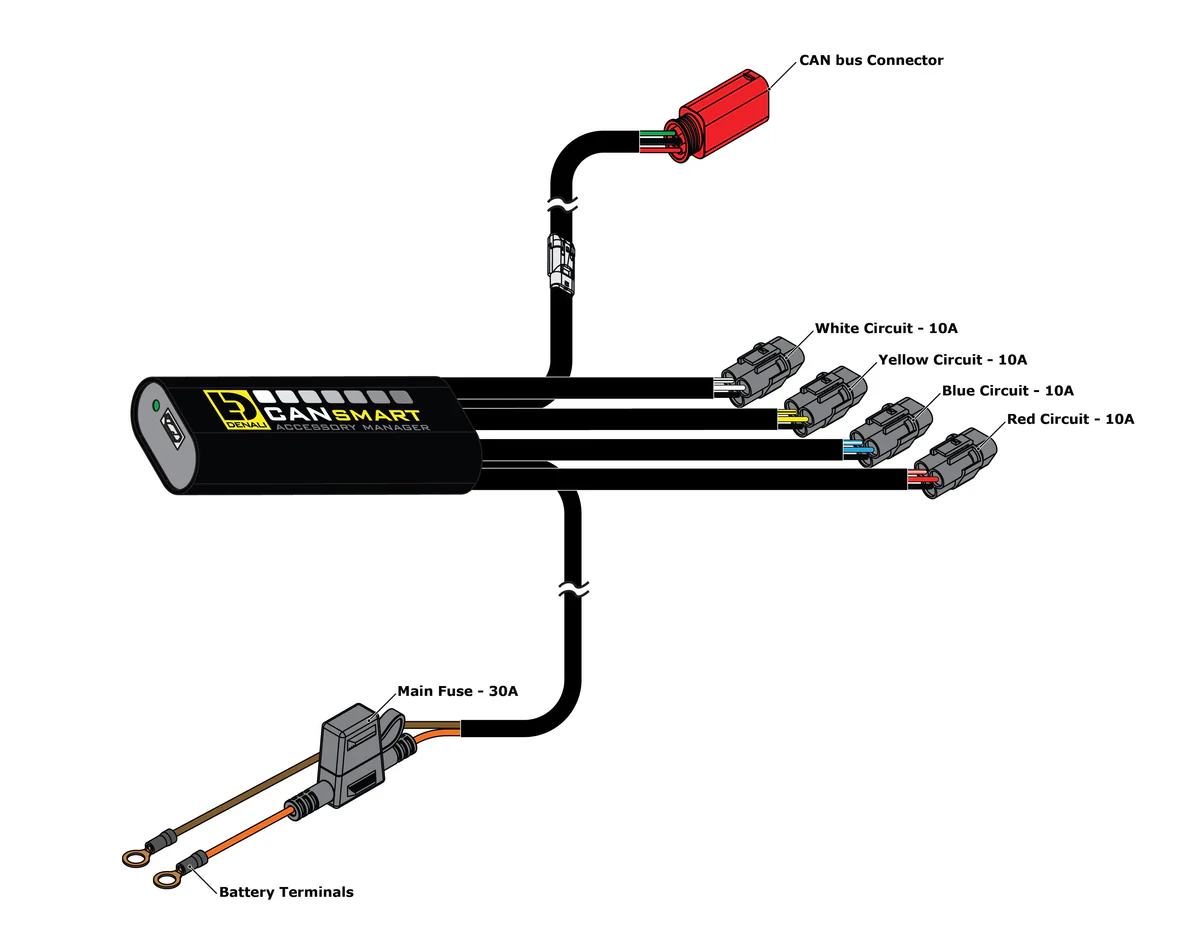

With access to over 35 customizable settings, you can intelligently manage auxiliary lights, horns, brake lights, and more. The controller features four electronically fused circuits, each capable of handling up to 25 peak amps (10 amps continuous), giving you the flexibility and power to run almost any accessory setup with confidence and ease.

Features

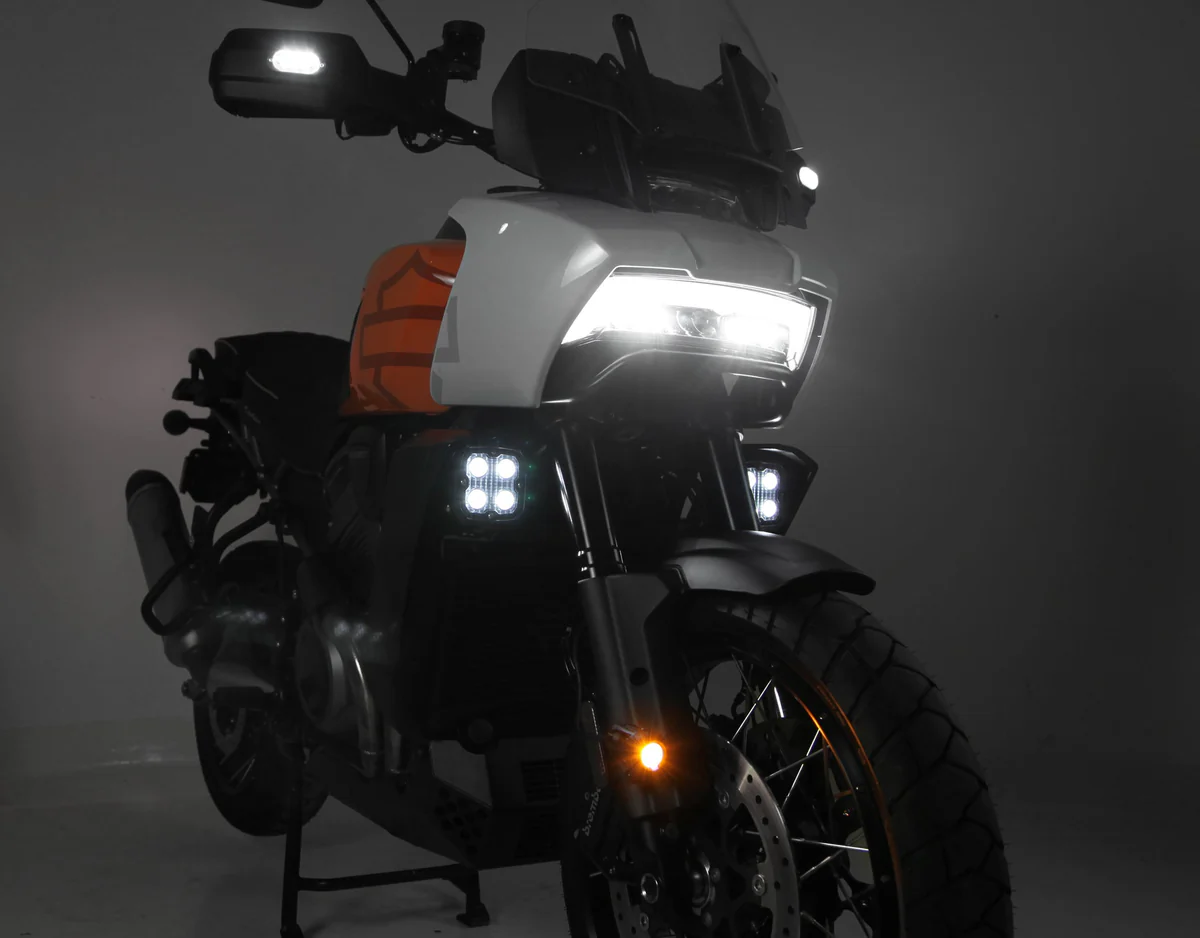

• Automatically switch passing lamps and auxiliary lights between high and low settings using the factory high beam switch

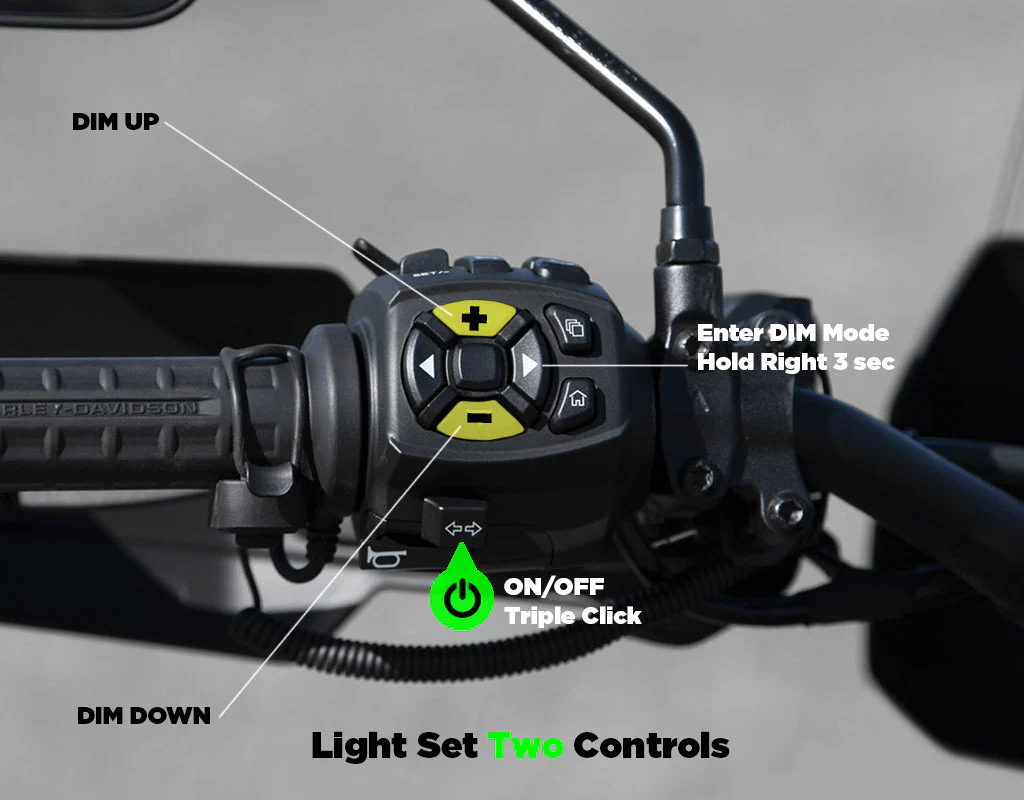

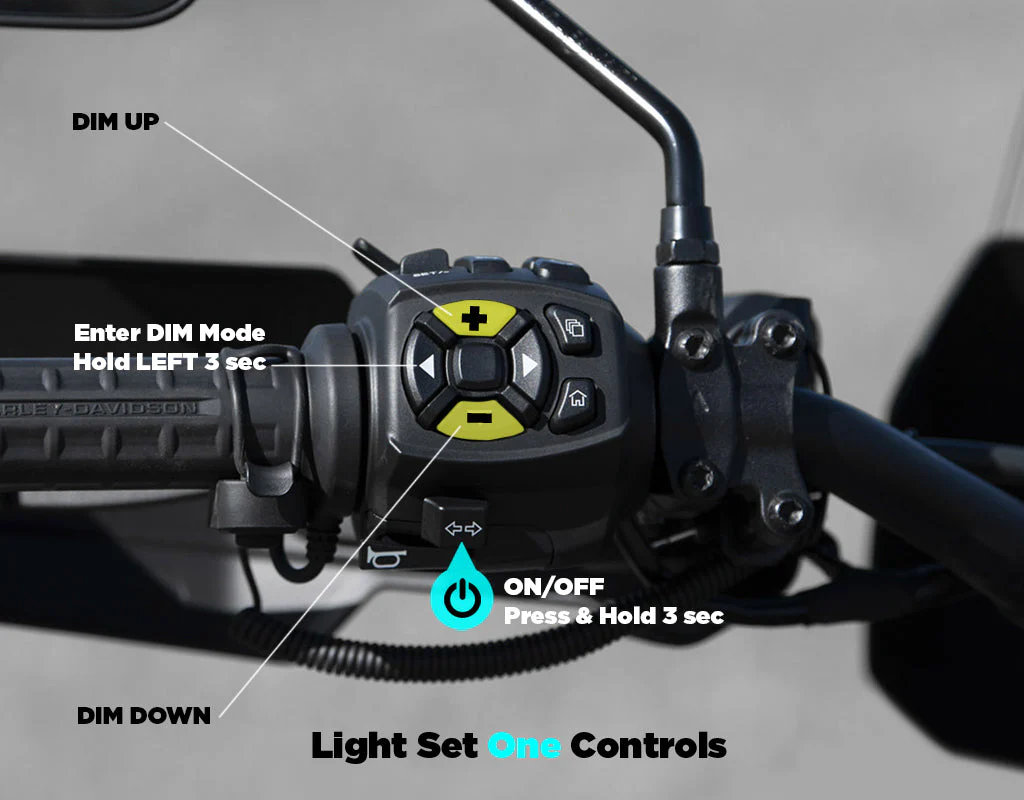

• Turn two sets of lights on/off and adjust brightness (day and night) using your bike’s trip switch
• Triple-click to turn lights on/off, or hold for 3 seconds to dim between 10% to 100% intensity
• Set lights to modulate for increased visibility to other drivers
• Pulse high beam switch three times to make auxiliary lights strobe for attention
• Cancel auxiliary lights with turn signals to prevent overpowering the signal

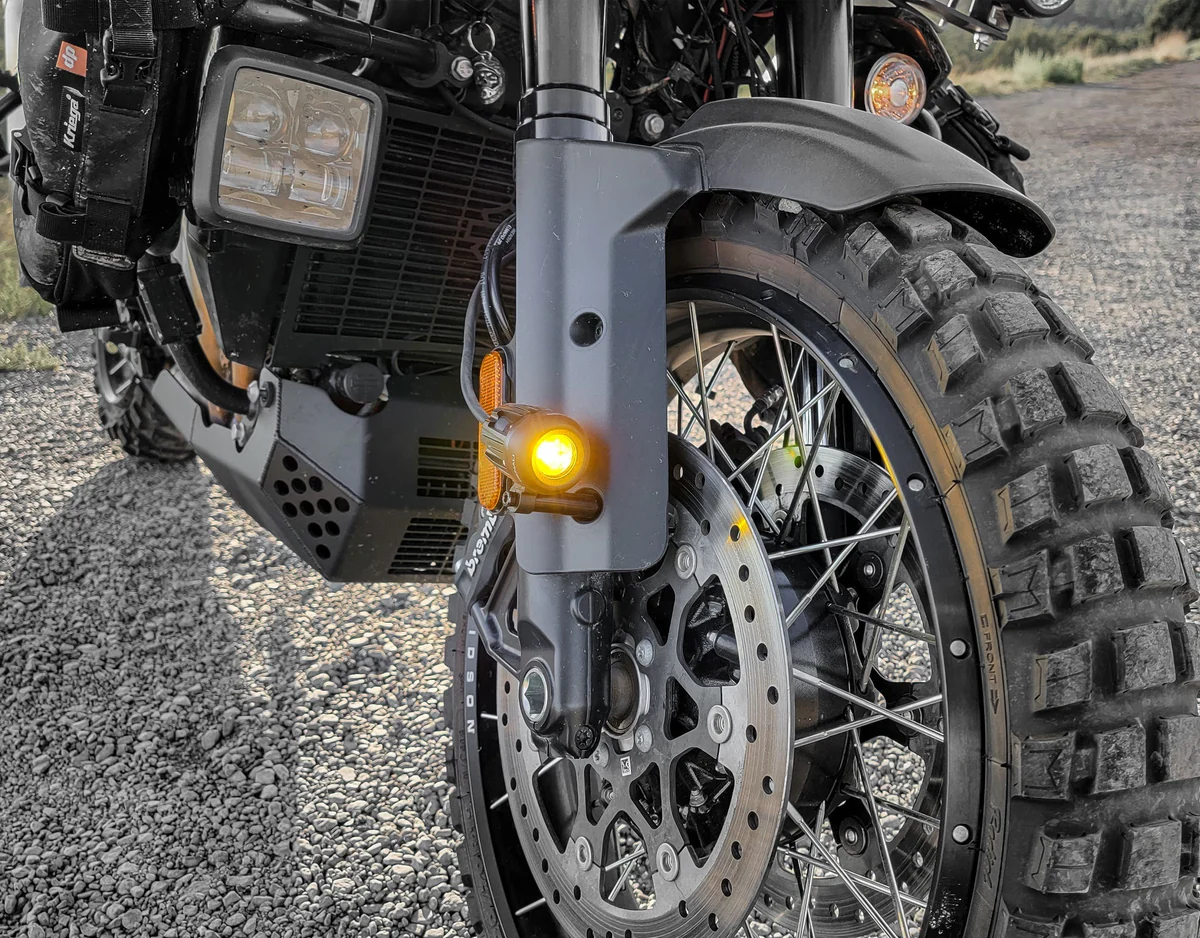

• Flash auxiliary lights with turn signals to use them as turn signals

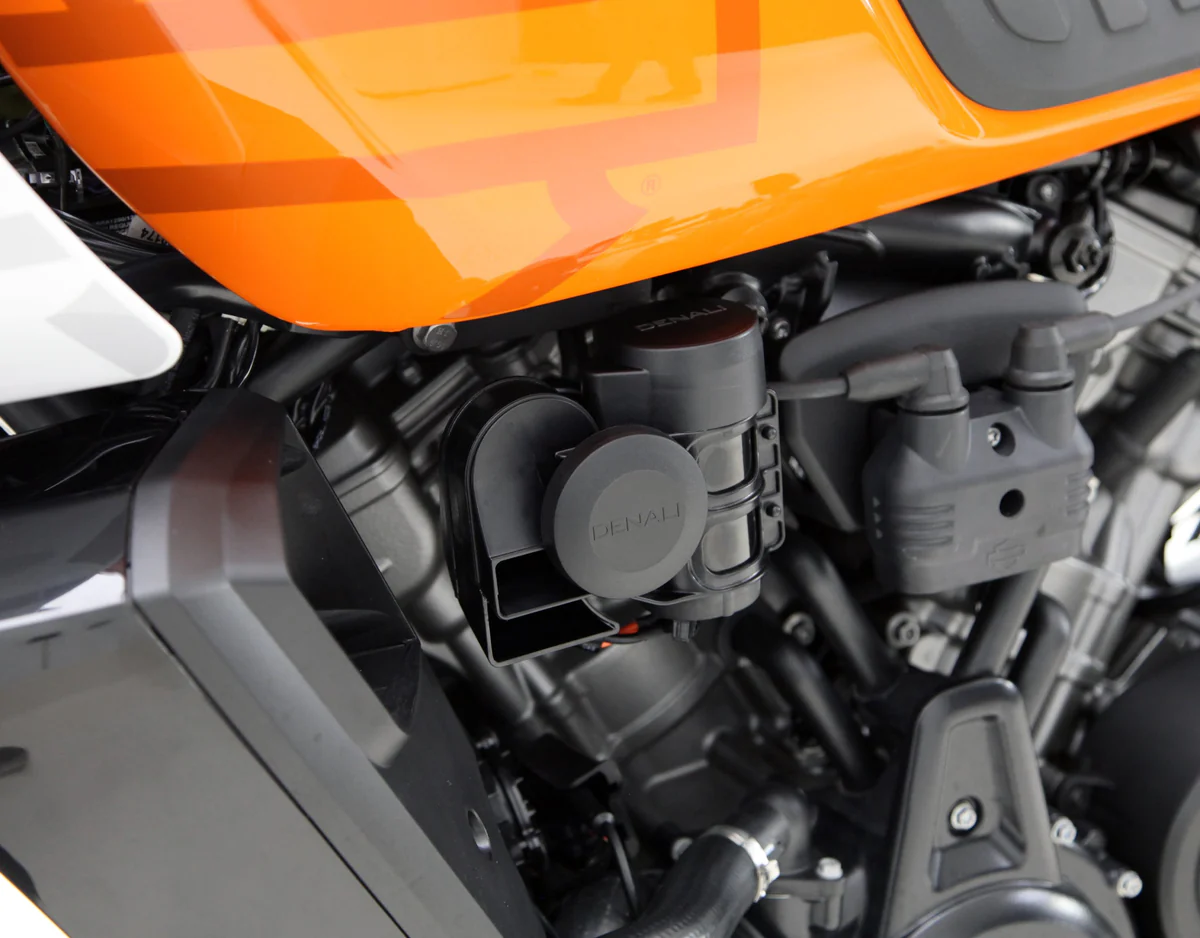

• Easily connect high-power horns like the SoundBomb™ without extra harnesses or relays
• Make auxiliary lights strobe automatically when you sound your horn

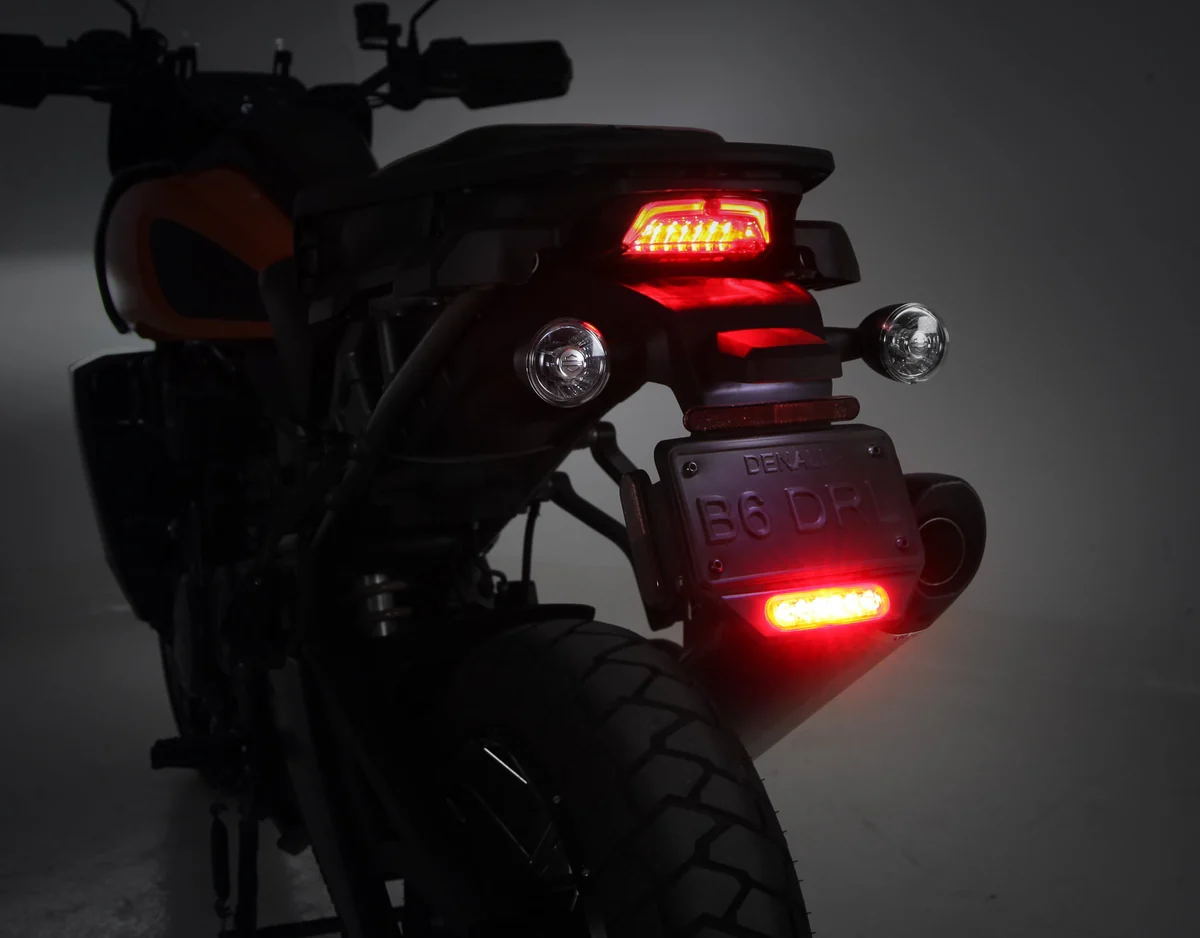

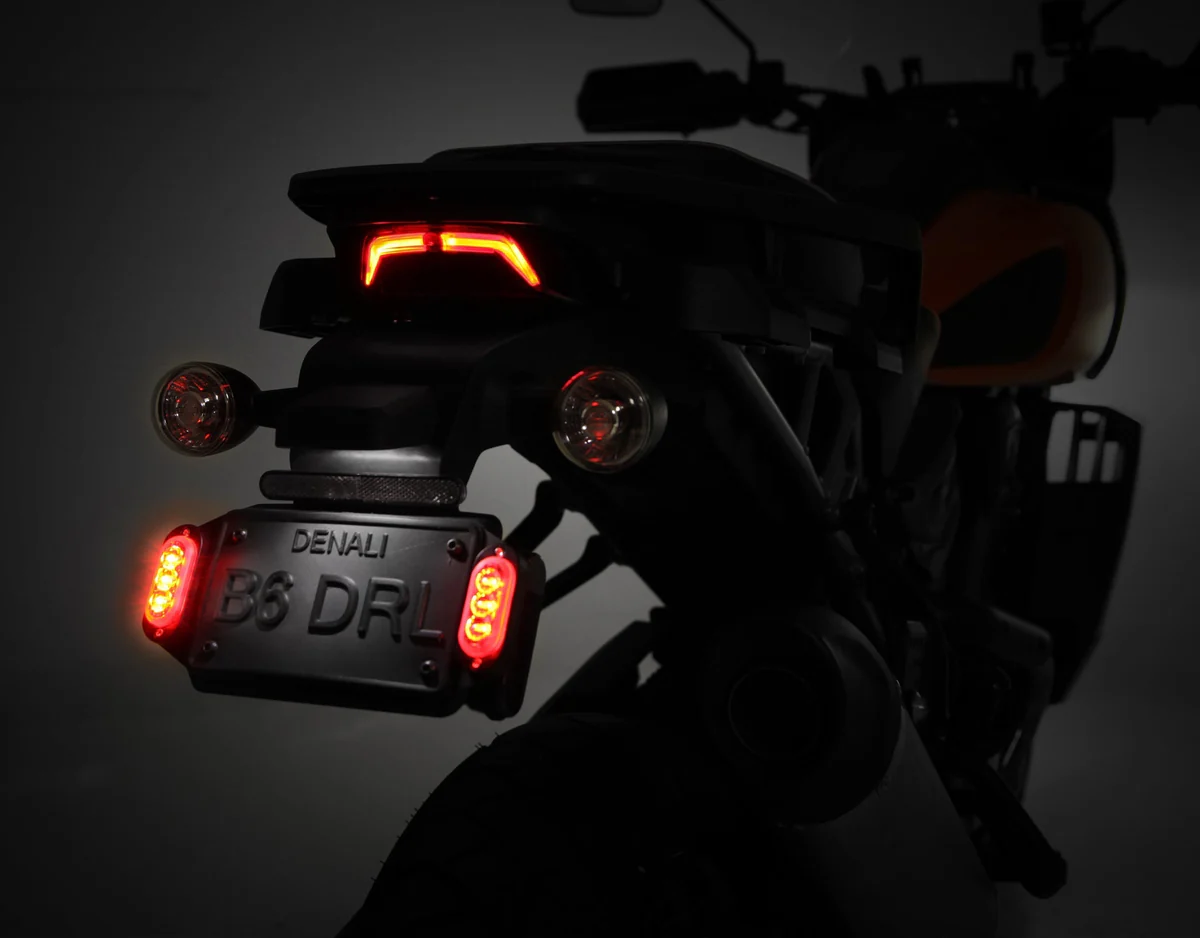

• Activate auxiliary brake lights during deceleration with Smart Brake technology, even before using the brake
• Choose from four flash patterns for your auxiliary brake lights for better visibility
• Use a universal accessory circuit to provide switched 12V power for your gear
• Set delay time to keep accessories powered for up to 30 seconds after shutting off your bike
• Ideal for powering GPS, phone, heated gear, or other electronic devices
